Sprayer Precision Ag Upgrade Kits

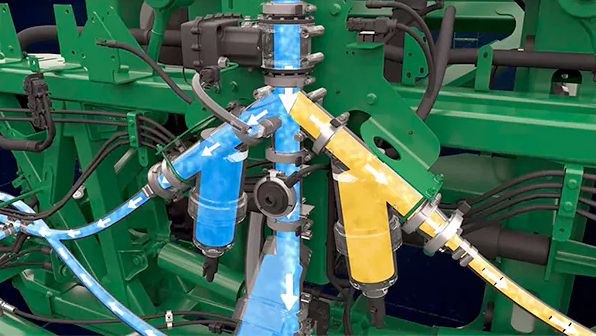

Pressure Recirculation/Product Reclaim

  • Pressure recirculation pushes product through the sprayer booms with a three-way valve, keeping solution from settling and delivering a consistent product to every nozzle
  • Products reclaim pushes air through the sprayer lines and moves the solution back into the center feed tank
  • Save product with pressure recirculation – up to 30 gal (113.6L) per boom prime boom purge
  • Save up to $600 a day with pressure recirculation 10 times a day, coupled with approximately 22.5 gal (85.2L) of solution savings with product reclaim one to two times per day
  • Reduce crop damage from residual chemical buildup
  • No tank modifications are needed

Compatibility:

  • R4030, R4038, and R4045; model years 2018-2021
  • R4044 and R4060; model years 2019-2021
  • 400 and 600 series; model years 2022 and newer

See & Spray™ Select Precision Upgrade

• A one-time purchase with unlimited usage for fallow acres
• See, target, and kill weeds using advanced cameras and machine learning
• Select targeted or broadcast applications
• customers experienced an average herbicide savings of 77% compared to a traditional broadcast sprayer. Individual results may vary.
• Reduce water usage and tender stops
• With purchase of an annual license, gain real-time variable rate capability
off detected green biomass, allowing you to spray product where it's
needed most
• Delivers results at operating speeds up to 25.75 km/h (16mph)
with approved nozzles
•Target spray day and night


Compatibility:


• R4030 to R4060, 400 and 600 Series;
model years 2018 and newer
• Boom length of 120 ft (36.6 m)
• Requires ExactApply™, Boom Trac Pro 2
with See & Spray™ compatible
height sensors
• Requires a G5Plus integrated display,
a StarFire 6000 or newer receiver,
and must have a SF3 signal or RTK
• Requires steel booms and
stainless steel plumbing
• Model Year 2022 and newer machines
require Pressure Recirculation
• Not compatible with Direct Injection

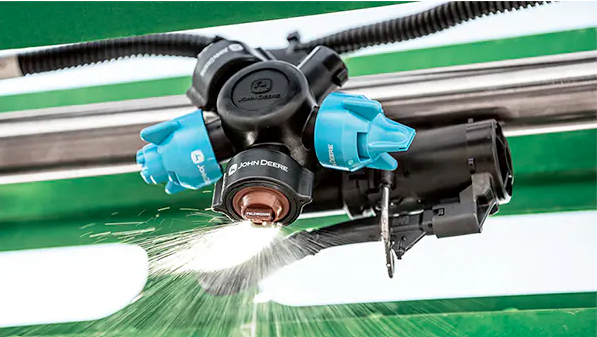

Individual Nozzle Control Pro

  • Offers a step up from Sectional Control, allowing for more precise application
  • Save 2-5% on herbicides and pesticides
  • Section size reduced to individual nozzle turrets, reducing overlap and overspray
  • Turn compensation by individual nozzle
  • 15-Hz single pulse – width modulation (PWM)
  • Combination of proven existing standard flow hardware with increased capability matching what is shown for other nozzle control
  • Compatible with pressure recirculation and product reclaim

Compatibility:

  • R4030 to R4060, 400 and 600 series; model years 2014 and newer
  • 4730 and 4830 model years 2008-2014
  • Boom lengths of 100ft and 120ft

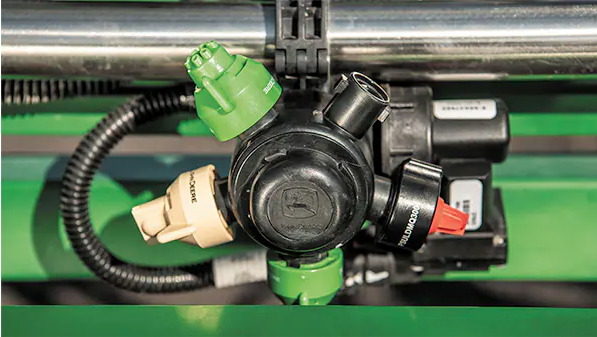

Individual Nozzle Control Heavy Duty

  • Designed for high-viscosity and suspended solid fertilizers and chemicals
  • Allows accuracy of nozzle control down to the individual nozzle, helping reduce overlap and overspray, reducing overall chemical usage and over application
  • Utilizes the John Deere five-position high-flow nozzle body
  • Flow is controlled by a ball valve and powered open and closed by a small electric actuator on each nozzle
  • Section width equivalent to the nozzle spacing when used with John Deere Section Control
  • Compatible with pressure recirculation and product reclaim

Compatibility:

  • R4030 to R4060, 400 and 600 series with 120ft steel booms, model years 2018 and newer
  • LS475 and LS20 Liquid Application System for F4365/800R with boom lengths of 90 ft; model years 2021 and newer

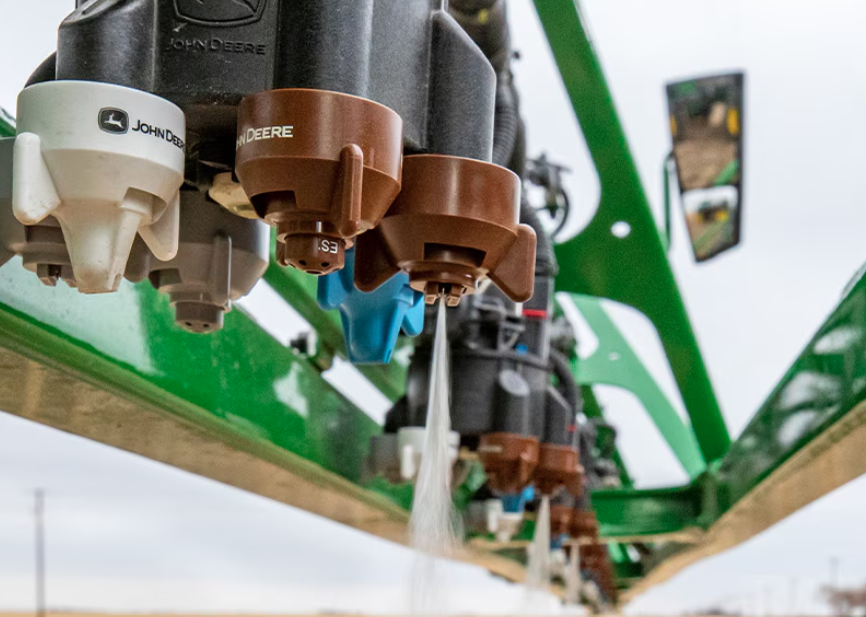

Exact ApplyTM

ExactApply features precise droplet sizing and consistent application management. Providing you up to three times the pulsing frequency of competitive systems – and advanced A+B nozzle design – ExactApply maintains your target rate and pressure over a wider range of speeds. Your dealer can work with you to determine your machine's compatibility.
  • Reduce over-application, crop burn, and off-target drift
  • Save 2-5% on herbicides and pesticides*
  • Cover more acres in a shorter time
  • Get in and out of the field when weather conditions are best

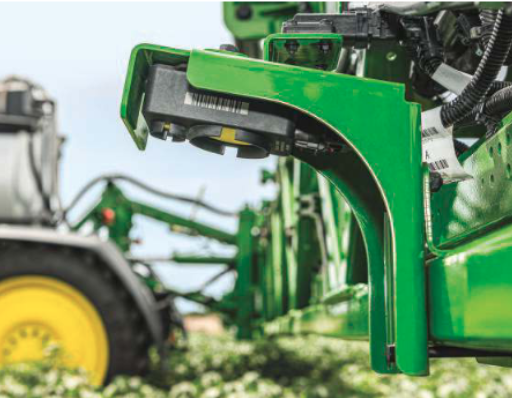

BoomTrac Pro 2

  • Offers a 22% greater spray accuracy and 5x increase in the amount of time the boom maintains its target height (comparted with the previous BoomTrac Pro system)
  • Inertia-monitoring sensor helps correct chassis roll
  • Helps ensure accuracy in product application and reduces drift, even in hilly or rough conditions
  • Requires BoomTrac Pro System, if not already installed, in order to operate
  • Precision Upgrade Kits come See & Spray Ready

Compatibility:

  • R4030, R4038, and R4045; model years 2018-2021
  • R4044 and R4060; model years 2019-2021
  • 400 and 600 series; model years 2022 and newer

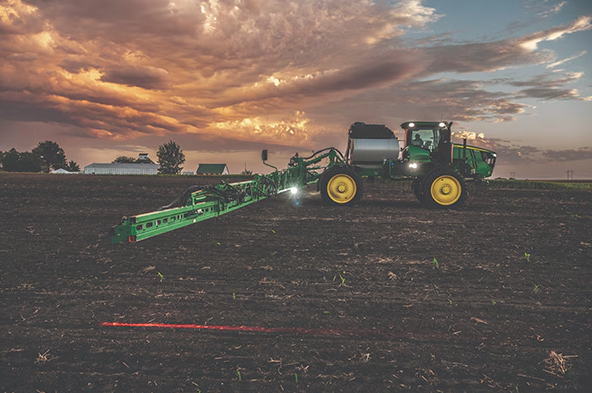

LED Boom and Vehicle Lighting

  • Help improve visibility around the machine and increase confidence when operating in less-than-ideal light situations
  • Vehicle work lighting package:
    • 20 LED Lights added to the hood, cab roof, boom cradles, left-hand platform, fill station, and right-hand fuel tank
  • Boom Lighting Package:
    • Tip Edge Light
      • Illuminates a line on the ground aligned with end of the boom
      • Installs on left-hand and right-hand boom tips
      • Compatible with fence row nozzles and foamers
    • Spray Pattern Illumination lights:
      • Located on inside of inner wings
      • Faces outward
      • Can be used with ExactApply spray pattern lighting

Compatibility:

  • Vehicle lighting – R4030 up to R4060; model years 2014-2021
  • Boom lighting – R4030/408R up to R4060/616R; model years 2014 and newer
